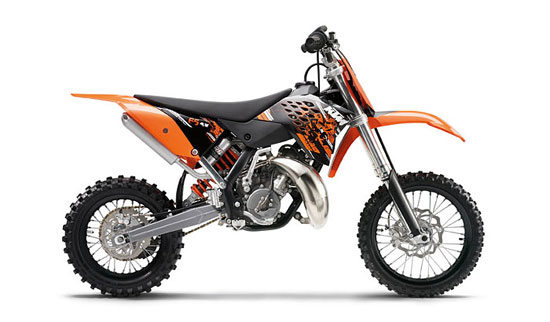

KTM 65XC, 2009
Specifications
Engine type Single Cylinder, 2-Stroke, Case Reed Induction, Liquid Cooled
Displacement 64.85cc
Bore x stroke 45/40.8 mm (1.77/1.61")
Starter Kick starter
Transmission 6 gears
Carburetor Mikuni VM 24
Lubrication Lubrication mixture 60:1
Engine lubrication 15W50
Primary drive 23:75
Final drive 14:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Moric digital 2M1
Frame Central double-cradle-type 25CrMo4
Subframe Aluminum 7020
Handlebar Pro-Taper Aluminium Ø 22 mm (0.87")
Front suspension Marzocchi USD Ø 35 mm (1.38")
Rear suspension WP monoshock
Suspension travel front/rear 220/270 mm (8.66/10.63")
Brakes, front/rear Disc brake Ø 200/160 mm (7.87/6.3")
Rims, front/rear 1.6 x 14" / 1.6 x 12" Aluminum
Tires, front/rear 60/100-14"; 80/100-12"
Chain 1/2 x 1/4" O-Ring
Main silencer Aluminum 65 SX
Steering head angle 64.5°
Trail Adjustable
Wheel base 1137mm ± 10mm (44.76"±0.39")
Ground clearance (unloaded) 280mm (11")
Seat height 750mm (29.53")
Tank capacity approx. 3.5 liters (0.91 gal)
Weight (no fuel) approx. 55.4 kgs (122.14 lbs)
